Check Weigher Machine

Overview

PLAN IT Inspection Systems’ CheckWeigh Check Weighers provide rapid and accurate package weight verification, ensuring precise quality control, regulatory compliance, and reliable performance across production lines. Designed for high-speed operations, these systems help manufacturers maintain accuracy while reducing product giveaway and improving overall efficiency.

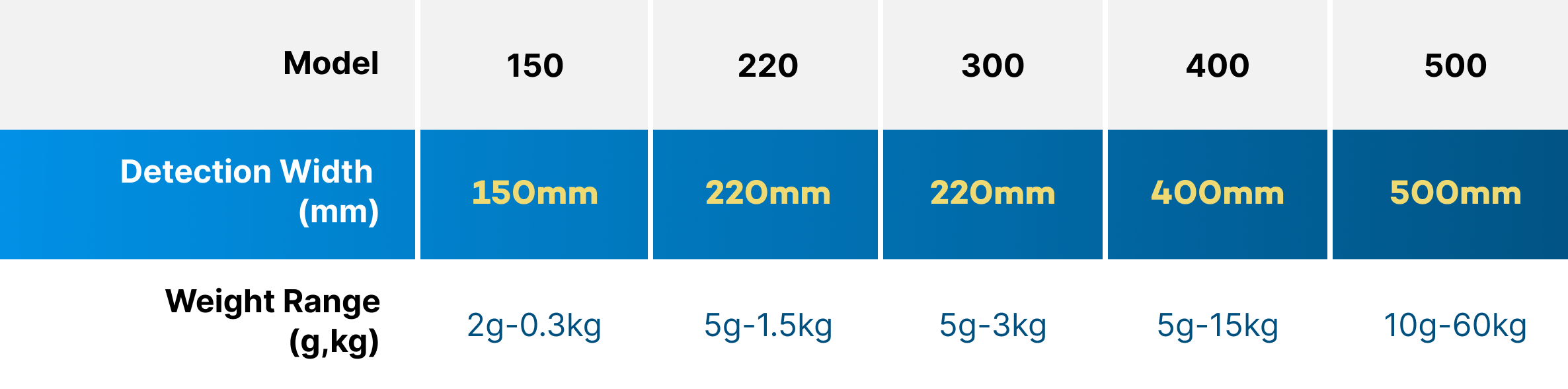

Available in multiple models with different detection widths to accommodate various product sizes and production requirements.

‍

Speeds (Up to)

Speeds up to 60 m/min

Features

  • Rapid Weight Verification
    Quickly verifies product weight to support consistent quality control and inspection throughout production.‍
  • Precision Dynamic Weighing with HBM Load Cells
    High-precision HBM load cells deliver accurate in-motion weighing from ±0.1 g to 60 kg capacity.
  • 200-Group Recipe Storage
    Store up to 200 product recipes for quick changeovers and efficient production setup.
  • Food-Grade Stainless Steel Construction
    SUS 304 stainless steel construction designed for hygienic, washdown-ready production environments.
  • Embedded RTOS Platform
    Real-time operating system ensures reliable weighing performance and consistent operation.

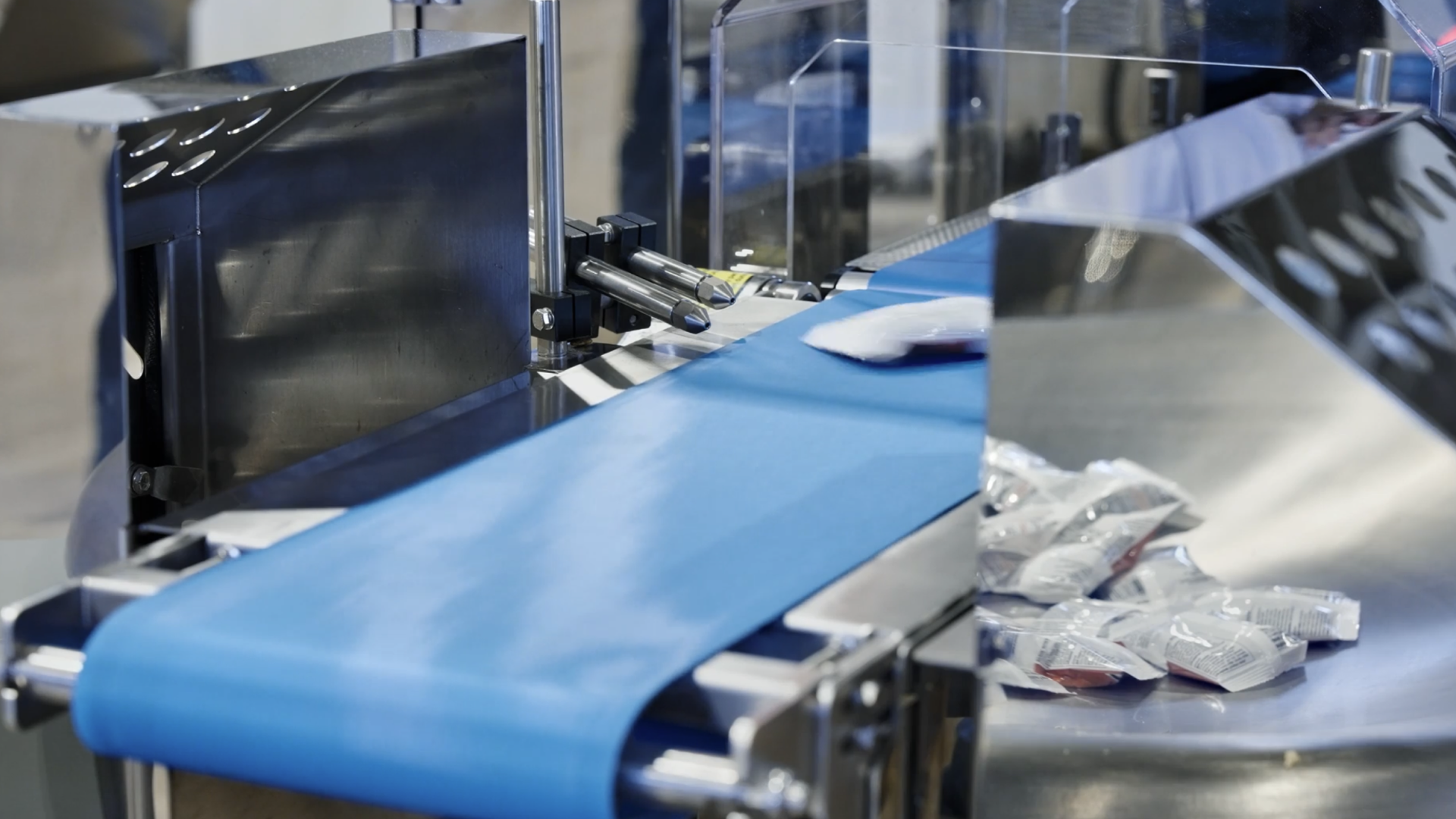

  • Multiple Rejection Technologies
    Flexible rejection options including air jet, pneumatic pusher, flipper, drop belt, and heavy-duty pusher to accommodate different products.
  • 10-Inch Touch Screen HMI
    Large touchscreen interface provides intuitive setup, monitoring, and machine operation.

Specifications

Best Accuracy

Accuracy from ±0.1 g to ±10 g depending on model and application.

IP Rating

IP54 protection against dust and water splash.

Packaging Type

Pouches

Jars

Add-ons

  • IP65 Ingress Protection
    Higher-rated enclosure designed for wet, high-hygiene environments with enhanced protection against dust and water.
  • Air Pressure Monitor
    Alerts operators when low air pressure may impact rejection performance and system reliability.
  • Sand Blasting Surface Finish
    Textured stainless steel finish available as an alternative to the standard matte surface.
  • Whole Cover for Rejection
    Full reject-area enclosure improves product containment and supports food-safety requirements.
  • Rejection Confirmation
    Sensor verification ensures rejected products are successfully removed from the production line.
  • 4-Set Load Cell Configuration (CheqWeigh 500 Only)
    Four-load-cell platform provides increased stability and accuracy for larger, heavier products.
