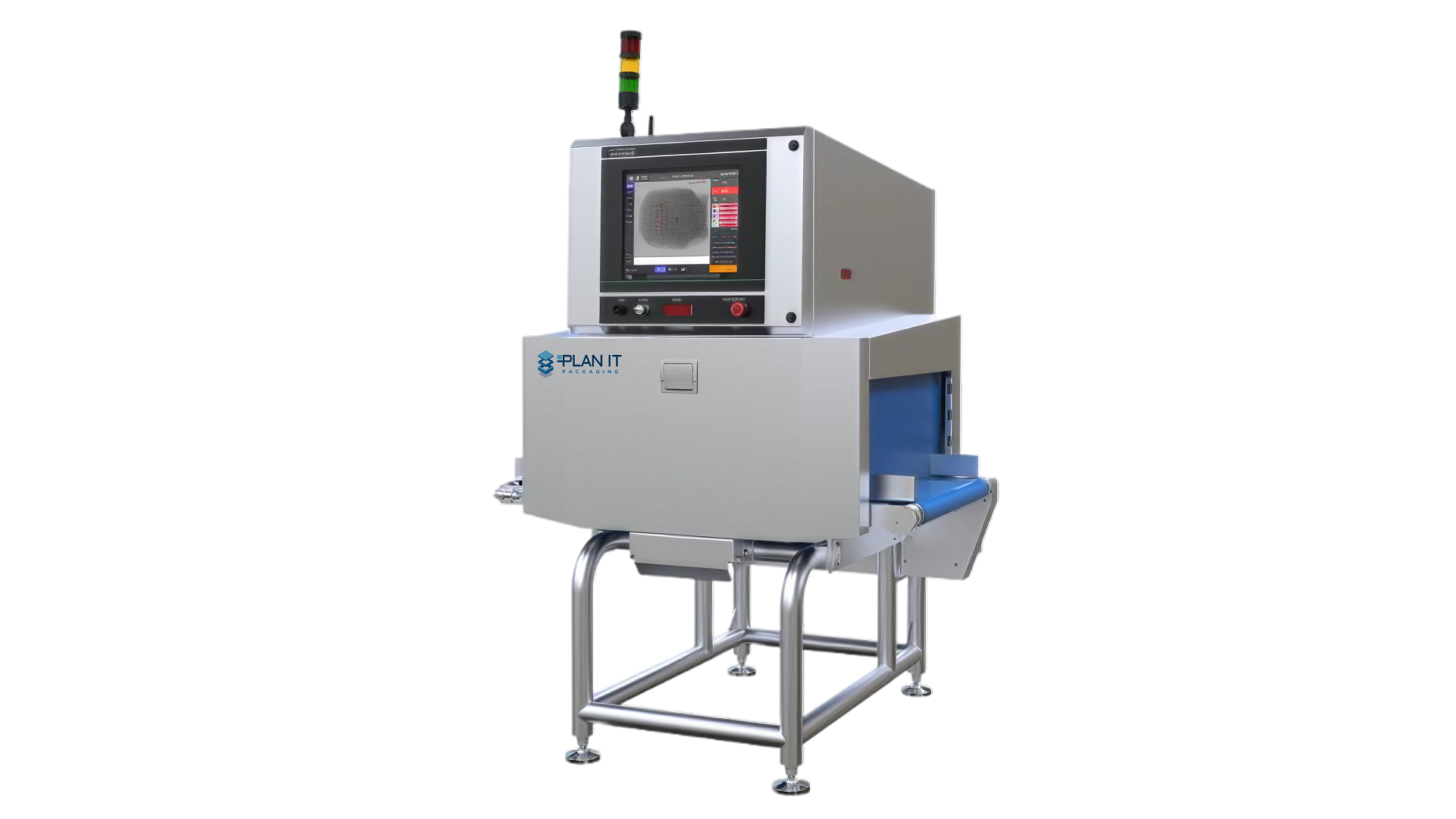

X-Ray Machine

Overview

PLAN IT Inspection Systems' Bulk X-Ray Systems deliver advanced inspection for high-volume applications, detecting contaminants such as metal, glass, stone, and stick fragments while identifying product irregularities and packaging issues. Designed for bulk product handling, these systems provide accurate inspection and automated rejection to help maintain product quality, improve production efficiency, and support reliable quality control.

Speeds (Up to)

Speeds up to 60 m/min

Features

  • Adjustable Conveyor Height
    Adjustable Heights Up to 800mm
  • HMI Touchscreen
    Large, user-friendly touchscreen interface for simplified operation and monitoring.
  • Algorithm Software
    X-Ray Inspection System

Specifications

Max Load
Up to 40kg

X Radiation Source
Up to VJ, max 80Kv/350W

Temperature
0–45°C with cooler equipped

IP Rate
IP66 tunnel / IP55 whole system incl. dehumidifier

Best Sensitivity
Up to SS ball 0.3mm, SUS wire 0.2*2mm, Glass/Ceramic 1.0mm

X-Ray Leakage
<1 μSv/h

Detector Pixel Size
0.4mm

Packaging Type

Pouches

Jars

Add-ons
